Zippe Industrieanlagen has delivered a major order for Wiegand-Glas.

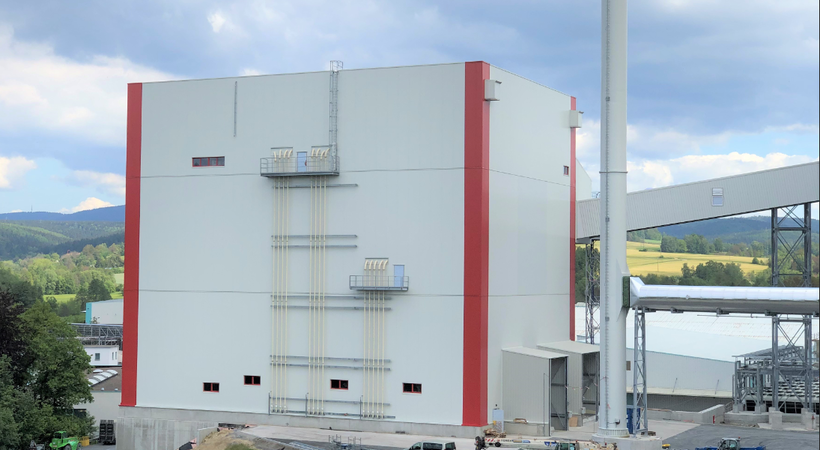

The project is about a new batch and cullet plant including batch transport as well as two cullet return systems for the Wiegand glassworks in Schleusingen, in Thuringia, Germany.

The first line, which feeds the new melting furnace 1, was put into operation successfully at the beginning of June 2020.

Two new production lines will be built next to the existing production site at Schleusingen.

Zippe received the order from Wiegand-Glas for the construction of the batch and cullet plant as well as two cullet return systems on a turn-key basis.

The new 900tpd batch and cullet plant in Schleusingen is designed to feed two melting furnaces each with a capacity of 450 tons per day.

The sand feeding of the silos is executed with a mechanical system. The other raw material silos are fed pneumatically. All silos are weighed in order to measure the exact raw material stock.

Eight container scales and two small component scales are employed for weighing the raw materials.

For mixing the batch, three high duty pan mixers are used. Via a redundant batch transport the batch is then transported to the corresponding furnace pre-silos.

Furthermore, a complex cullet dosing system is integrated in the batch house. Various sorts of external cullet can be dosed with the help of 12 belt scales. The addition of internal cullet is achieved via three further belt scales directly inside the furnace building.

Additionally, two cullet return systems are also part of the Zippe scope of supply.

Here, five scraping conveyors as well as Zippe crusher technology comes into operation.

The generated internal cullet is transported directly into the cullet silos in the furnace building and fed into the melting process again.

The Zippe scope of supply also comprises the complete steel work including silos, equipment delivery, control system as well as the complete services such as installation, cabling, pipework, commissioning and training of customer personnel.
